Characterization of canine mastocytoma cell response to cryoablation

Kimberly L Santucci1, Kristi K Snyder1, Robert G Van Buskirk1-3, John G Baust2,3 and John M Baust1*

1CPSI Biotech, Owego, NY, USA
2Center for Translational Stem Cell and Tissue Engineering Binghamton University, 4400 Vestal Parkway East, Binghamton, NY 13902, USA
3Department of Biological Sciences, Binghamton University, 4400 Vestal Parkway East, Binghamton, NY 13902, USA
*Corresponding author: John M Baust, CPSI Biotech, 2 Court St. Owego, NY 13827, USA, Tel: (607) 687-8701; Fax: 607-348-1516; E-mail: jmbaust@cpsibiotech.com
Received: 20 December, 2019 | Accepted: 31 January, 2020 | Published: 04 February, 2020

Cite this as

Santucci KL, Snyder KK, Van Buskirk RG, Baust JG, Baust JM (2020) Characterization of canine mastocytoma cell response to cryoablation. Int J Vet Sci Res 6(1): 005-013. DOI: 10.17352/ijvsr.000047

Introduction: Mastocytoma Tumors (MCT) represent 16%-21% of all skin cancers in dogs, making it the most common form of cutaneous cancer. Solitary MCT are typically treated with wide surgical excision margins. While effective, MCT excision can cause the release of a large amount of histamine and other cytokines resulting in complications such as systemic shock or anaphylaxis. Treatments such as chemotherapy and radiotherapy have been considered to achieve complete remission. Cryoablation also represents a potential treatment option for MCT. While studies have shown cryoablation to be beneficial for the treatment of numerous cancers in animals and humans, few studies have described the use of cryoablation to treat MCT’s. The limited use of cryoablation is due to a number of factors including a lack of basic information pertaining to dosing (minimal lethal temperature) necessary to destroy MCT cancer. As such, in this study we conducted a series of in vitro studies using the C2 cell line and a pilot ex vivo fine needle aspirate tissue sample in an effort to detail the effects of freezing of canine MCT.

Methods: Samples were exposed to temperatures ranging from -5°C to -25°C, modeling the periphery of a cryogenic lesion for 3, 5 and 10minutes, and various markers of viability and modes of cell death were assessed daily over a 3 days recovery period. Additionally, investigation of the involvement of apoptosis in MCT cell death flowing freezing was conducted via immunoblotting and caspase inhibition studies.

Results: Viability studies revealed the -25°C isotherm as the critical minimal lethal temperature to achieve complete MCT cell death regardless of hold time. As the hold time at temperatures of -15°C and -20°C increased from 3 to 10minutes the level of cell death was also found to increase. Fluorescence microscopy, caspase inhibition and protein analysis revealed necrosis to be the primary mode of cell death following freezing. These studies, however, also revealed a significant level of apoptotic cell death post-freeze. Molecular analysis suggested that freezing to -15°C to -20°C resulted in the activation of mitochondrial mediated apoptosis 4 to 8 hours post freeze.

Conclusions: In summary, this in vitro study was designed as a first step investigation into the sensitivity of MCT cancer to freezing. These in vitro results suggest that freezing to temperatures of ≤-20°C results in a high degree of MCT cell destruction. Further the data suggest that both apoptosis and necrosis play an important role in cell death following cryoablation. These data may have translational application to MCT treatment in vivo.

Introduction

Mastocytoma represents 16%-21% of all skin cancers in dogs, making it the most common form of cutaneous cancer [1]. Mast cells are generated from hematopoietic stem cells, reside in connective tissues, and comprise a necessary component of the immune response system [2]. The cause of mast cell tumors (MCT’s), whether benign or malignant, is unknown. The formation of cancerous MCT’s occurs frequently in dogs with median age of onset between 8-9 years [3,4]. One of the most predictive factors in MCT development and subsequent aggressiveness is breed. The majority of reports agree that boxers, Labrador retrievers, pugs, golden retrievers and bulldog breeds present with the highest incidence of MCT’s [3-7]. Though there are a number of factors which can influence prognosis, including breed, c-kit mutation status and age, many veterinarians agree that the most predictive factor in MCT aggressiveness is tumor grade. Though there can be wide variability in the physical appearance of cutaneous MCT’s, grade I tumors are often surgically excised with small margins for successful outcome, while grade II and III tumors can present a greater challenge. In general, a solitary MCT with wide surgical excision margins carries a positive prognosis. However, the surgical excision can cause the release of a large amount of histamine and other cytokines which may result in complications such as systemic shock or anaphylaxis [8]. Additionally, in some cases, wide surgical margins are not possible. Therefore, other treatments such as chemotherapy and radiotherapy have been considered to achieve complete remission [1,9,10]. Surgical excision typically requires the animal to undergo general anesthesia. This procedure is both costly and can be high risk in certain geriatric patients. In these cases, the associated morbidity, risk and cost severely limits the treatment options for MCT’s, which can result in elected non-treatment of the disease.

An alternative treatment option for cutaneous MCT is Cryoablation (CA). CA is the use of ultra-low temperatures to provide targeted freezing and subsequent destruction of cancerous or non-cancerous tissues. As a minimally invasive modality with less side effects than radiation and chemotherapy, CA is an attractive option for the treatment of solid tumors [11-13]. Cryosurgical techniques include ultrasound guided imaging to visualize ice ball formation as well as temperature monitoring by the placement of multiple thermocouples [13-15]. CA has been applied with a high degree of success in the treatment of skin, prostate, renal, liver, breast, and bone cancers, among others in both humans and animals [16-23]. To this end, several reports have demonstrated CA is as effective or superior to other cancer treatment options including surgery, radiotherapy and chemotherapy [12,24-26]. In addition to being an effective cancer therapy, CA has the benefit of low incidence of postoperative morbidity, low levels of pain, and is often utilized as a outpatient surgical approach [12,24,25]. CA also offers the benefit of being a minimally invasive procedure thereby reducing and in some cases eliminating the need for general anesthesia [13,14].

Cryosurgery also has a long but limited history of application in the veterinary setting. Some of the first reports of CA in small animals were in the treatment of dermatological conditions in dogs and cats [27-29]. Over time, the range of CA treated neoplasms has expanded to include less accessible organs. CA has been reported in numerous cases as early as 1971 for the treatment of laryngeal neoplasms [30-32]. Additionally, cardiac CA procedures have been performed to treat canine arrhythmias [33], as well as to test the feasibility of epicardial ablation [34]. One study performed on canine renal neoplasms determined the procedure was a safe and feasible treatment option [35] and a case report described successful CA of a canine intranasal tumor [36]. These studies illustrate the use of cryosurgery as a possible treatment option for a variety of disease states.

The reported benefits and effectiveness of CA in both the veterinary and human cancer therapy arenas suggests that CA may represent a viable option for MCT. While a potential option, there is little information in the primary literature as to the effectiveness and response of MCT’s to CA. Numerous studies have detailed the effects of freezing in various cell systems demonstrating a differential response to similar freezing insults. Cell death due to freezing is not only a consequence of freeze rupture, but is also related to differential freeze-induced cell stress response which is believed to dictate therapeutic outcome [15,26,37]. Studies have also demonstrated that different molecular dispositions (sub-types) of the same cancer tissue type can respond differently CA [38-40]. We have published studies using numerous cell models investigating this phenomenon [12,26,40]. For instance, Snyder, et al., have shown that breast cancer cells tolerate freezing to -15°C, whereas cardiac cells can withstand -30°C [41,42]. Other studies have demonstrated prostate cancer cells tolerate -40°C to -80°C [12,43,44]. Studies have also established the translatability of in vitro data to clinical outcome and protocol establishment. For example, in vitro studies by Gage, et al.. [12, 13, 45], led to the clinical target of -40°C for prostate cancer. Studies by Snyder, et al., [41] and others [46], established -30°C as the target for cardiac ablation. More recently, in vitro cell and tissue engineered model studies proved critical to the development of the percutaneous SCN system for prostate cancer [47,48]. Given the potential of CA, we conducted a series of cellular and molecular based analyses of mast cells following exposure to sub-freezing temperatures using the C2 cell line in order to gain an understanding of MCT cell response to CA. The C2 mast cell line was derived from a canine with end-stage illness after multiple metastases were observed and thereby represents an aggressive and advanced form of MCT cancer [49]. The temperature range of -5°C to -25°C was selected for investigation as it represents the reported transitional temperature range between complete cell death and survival in a number of cancers [11,13,15,50,51]. We hypothesized that delivery of an effective freeze dose (temperature and time) would result in complete C2 cell destruction. Further, we hypothesized that both apoptotic and necrotic pathways are activated following exposure to mild sub-freezing temperatures and that this molecular signaling plays a critical role in the extent of cell death.

Materials and methods

Cell culture

The C2 canine mastocytoma cell line was obtained from Dr. J. Wakshlag (Cornell University, Ithaca, NY, USA). Cultures were maintained in Falcon T-75 flasks at 37°C/ 5% CO2 in C2 complete media (RPMI-1640 (Caisson Labs, North Logan, UT, USA) with 10% fetal bovine serum (Caisson Labs), 1% penicillin/ streptomycin (Mediatech, Manassas, VA, USA), 1% sodium pyruvate (Lonza, Walkersville, MD, USA), and 0.5% 2-ME (60µM final concentration) (Sigma-Aldrich, St. Louis, MO, USA)), exchanged every 2 days. Experimental subcultures were plated into 96 well strip well plates (Corning, Lowell, MA, USA) at 8×103 cells per well or 35mm dishes (BD) at 5×105 cells per dish 2 days prior to experimentation to allow for the formation of a contiguous cell monolayer.

Freezing protocol

Costar strips (Corning) with 75µl medium per well or 35mm Falcon dishes with 1.5ml medium per dish were placed on a pre-cooled block within a circulating temperature-controlled bath at a preset temperature. Samples were frozen to temperatures of -5, -10, -15, -20 or -25°C. Sample temperature was monitored with a type T thermocouple (Omega, Stamford, CT, USA) and ice nucleation was initiated by liquid nitrogen vapor (crystallized water vapor) when samples reached -2°C (±1°C). Samples were held for 3, 5, or 10min and then allowed to thaw at room temperature (10min) before return to normothermic culture (37°C) to allow for system recovery and downstream assessment.

Cell viability

Sample viability was assessed post-thaw using the metabolic activity assay alamarBlue (Invitrogen, Carlsbad, CA, USA), diluted 1:20 in Hanks balanced salt solution (Mediatech). Media was aspirated and replaced with 100µl per well alamarBlue for 1h incubation at 37°C, and subsequently analyzed with a Tecan SPECTRAFluorPlus plate reader (TECAN Austria GmbH, Grödig, Austria) at excitation λ=530nm and emission λ=590nm. Following assessment, fresh media was replaced and samples were returned to 37°C. Assessment was repeated daily over a 3 days recovery period.

Caspase inhibition assay

Pan caspase inhibitor VI (EMD Millipore, Billerica, MA, USA) was reconstituted in dimethyl sulfoxide at a concentration of 10mM and diluted to a final concentration of 10µM in culture media prior to use. Inhibitor was applied in fresh medium to C2 subcultures in costar plates and kept at 37°C for 30minutes prior to freeze exposure.

Fluorescence microscopy

Samples were frozen as described and then fluorescence imaging was conducted at 1, 4, 8 and 24h post-freeze. Prior to imaging, samples were labeled with tri-stain fluorescent probes Hoechst (living cells, 0.06µg/µl), propidium iodide (necrotic cells, 0.007µg/µl), and YO-PRO-1 (apoptotic cells, 0.8µM) (Molecular Probes, Invitrogen, Eugene, OR, USA) to allow for identification of living, necrotic, and apoptotic populations within the sample. Samples were incubated for 15min in the dark before visualization using Zeiss Axiovert software (Carl Zeiss Microimaging, Thornwood, NY, USA) at 20×magnification.

Immunoblotting

Total protein was isolated temporally at 1, 4, 8 and 24hours post-freeze using radioimmunoprecipitation assay (RIPA) buffer with Halt protease inhibitor cocktail (Thermo Scientific, Rockford, IL, USA). Cell lysates were centrifuged for 15minutes at 13,000 rpm to collect the supernatant protein. Protein levels were quantified using a bicinchoninic acid protein assay kit (Pierce, Thermo Scientific). Equal amounts of protein (45µg) were separated on 12% polyacrylamide gels for 50min at 200 V and then transferred to polyvinylidene difluoride membranes using a semi-dry transfer system (Bio-Rad, Hercules, CA, USA) for 30min at 15V. Membranes were blocked with a non-animal protein buffer (G-Biosciences, Maryland Heights, MO, USA) diluted 1:1 with Tris-buffered saline and 0.1% Tween-20 for 1h at room temperature. Membranes were exposed to primary antibody overnight at 4°C in a humidity chamber. Primary antibodies were validated by the manufacturer for canine reactivity and include: phospho-Akt (1:500, Cell Signaling Technology, Danvers, MA, USA); Bcl2 (1:250, BD Transduction Laboratories, Franklin Lakes, NJ, USA); PARP (1:500, BD), Bax (1:500, BD), and α-tubulin (1:2000, abcam, Cambridge, MA, USA). Antibodies were diluted in a 1:2 solution of non-animal protein buffer and Tris-buffered saline with 0.1% Tween-20. Membranes were then washed (three washes at ten minutes each with agitation) in Tris-buffered saline with 0.1% Tween-20 prior to 1h room temperature secondary antibody hybridization in a 1:2 dilution of non-animal protein buffer in Tris-buffered saline with 0.1% Tween-20 with goat anti-rabbit-HRP (1:10,000, Pierce) or goat anti-mouse-HRP (1:10,000, Pierce) and StrepTactin-HRP (1:40,000, Bio-Rad) for molecular weight marker visualization. Membranes were then washed as described above before detection using the LumiGLO/Peroxidase chemiluminescent detection kit (CST) on a FujiFilm LAS-3000 system (FujiFilm, Edison, NJ, USA). Molecular weight was confirmed by migration of the western C-HRP protein marker (Bio-Rad).

Freezing of mast cell tumor tissue

A primary canine mast cell tumor biopsy was obtained via a fine needle aspirate procedure (Dr. A. Beaulieu, DVM, Dickin Memorial Animal Hospital, Johnson City, NY, USA). Following harvest, the biopsy was immediately placed in Viaspan and held at 4°C for 24h. Prior to experimentation, tissue was rinsed with a 1×phosphate-buffered saline (PBS, Mediatech) solution, sectioned and weighed. The control section was cultured with C2 complete media at 37°C. The experimental tissue samples were placed into a thin-walled PCR tube with 500µL media and then subjected to a short (2m30s) freeze exposure to -20°C (±1°C). Temperature was monitored with a type T thermocouple (Omega, Stamford, CT, USA) placed in the center of a representative the tissue sample. Following freeze exposure, the samples were placed into ex vivo tissue culture and assessed for viability at 1 and 24h post freeze. To assess viability, 1mL alamarBlue diluted 1:20 in HBSS was placed on each tissue section for 1h; the alamarBlue solution was aspirated into wells of a 96-well plate for spectrophotometer analysis and the tissue samples were returned to culture with fresh medium. Fluorescent units were then compared to non-treated tissue samples to determine percent viability.

Data analysis

Experiments were repeated a minimum of three times with an intra-experimental replicate of 7 samples/condition. Statistical significance (p<0.01) was determined by one way ANOVA using Excel. Viability is expressed as percent of control. Calculations of standard error mean (±SEM) was conducted using the 21 wells from combined experiments. Immunoblot protein bands were quantified with background values subtracted using densitometric analysis on Fuji Film Multi Gauge software V2.3 (Fuji Film).

Results

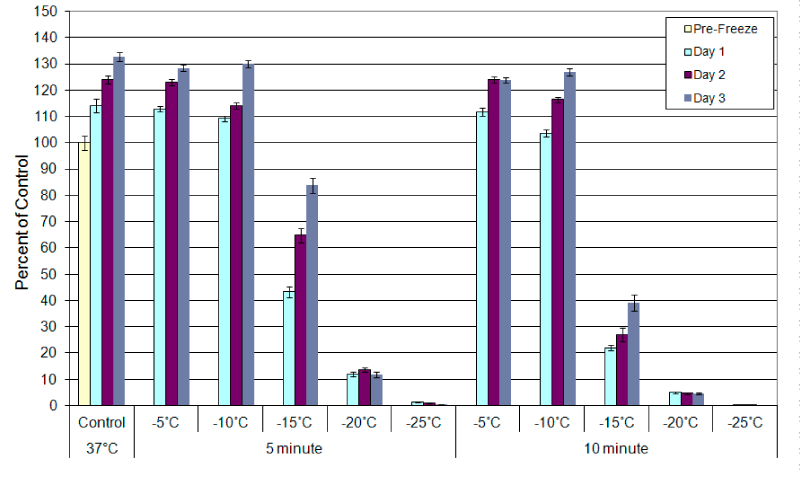

Impact of temperature and hold time on C2 survival

The C2 canine mastocytoma cell line was exposed to temperatures ranging from -5°C to -25°C and cell viability was assessed at 24h post-thaw (Figure 1). Regardless of exposure time (3, 5, or 10minutes), samples exposed to -5°C and -10°C demonstrated no significant cell loss compared to controls (<5%; -5°C 5min p=0.62, -5°C 10min p=0.05, -10°C 5min p=0.37, -10°C 10min p=0.04). Exposure to -15°C resulted in a significant increase in cell death, 24% (±1.8), 57% (±2.0), and 71% (±1.14) cell loss, when held for 3, 5, or 10minutes, respectively (Figure 1 (3min data not shown)) (p<0.001 for all samples). All samples, however, were found to recover to control levels by day 3 post-thaw. Exposure to -20°C resulted in a further increase in cell death in a time-dependent manner. Following exposure to -20°C cell survival was 12% (±1.4) (3min), 11.9% (±0.9) (5min), and 5.0% (±0.2) (10min) of untreated controls following 3, 5 or 10minute holds (respectively) at 24h post-freeze. While a low level of cell survival was noted following exposure to -20°C (5-12%), no re-growth was noted in any of the -20°C samples over the 3 day recovery period. Exposure to -25°C resulted in complete cell death regardless of the hold time. These data indicated that exposure time is a factor in C2 cell ablation at temperatures between -15°C and -20°C. However, when exposed to temperatures of ≤-25°C, complete ablation was achieved regardless of the exposure time.

Fluorescence microscopy correlates apoptosis and necrosis post-freeze

To visually assess the temporal regulation of cell death, fluorescence microscopy analysis was conducted using probes specific for apoptosis (YO-Pro-1) or necrosis (Propidium Iodide (PI) at 1, 4, 8, and 24h post-thaw following exposure to -10°C, -15°C, and -20°C. The analysis confirmed the relative level of cell death (apoptosis and necrosis) and viability at 24h within each population as was found in the viability studies (Figure 2). Analysis at 1h following a -10°C freeze revealed an increase in the levels of apoptosis/necrosis over that of untreated controls. Continued presence of apoptotic and necrotic populations was observed 4h and 8h post-freeze. Yet by 24h post-freeze, -10°C samples did not differ significantly from controls. Following freezing to -15°C a significant population of apoptotic and necrotic cells were apparent as early as 1h post-freeze. A continued increase in both populations was observed at 4h and 8h post-freeze resulting in a significant decline in viability at 24hours post-freeze. Samples exposed to -20°C also revealed an even greater level of positive staining for apoptosis and necrosis at 1, 4 and 8hours post-freeze resulting in <10% survival at 24hours, which was consistent with the metabolic activity assessment. Interestingly, the levels of cell death were found to peak at 8 hours post-thaw in both the -20°C and -15°C samples illustrating the involvement of a delayed cell death response.

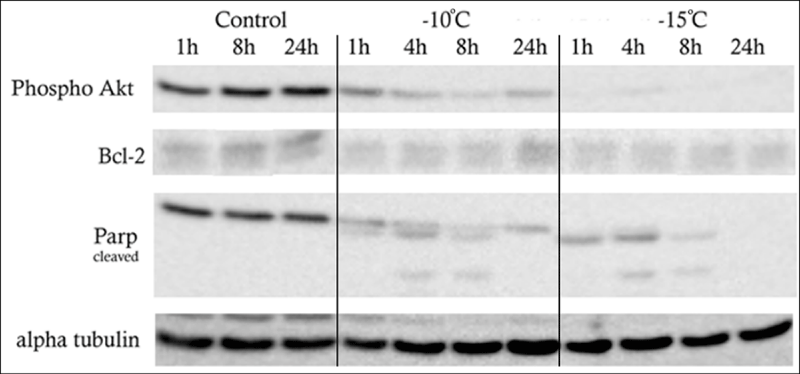

Molecular analysis of relevant proteins

With the identification of a delayed cell death response (apoptotic and necrotic activity) via fluorescence microscopy, temporal (1, 4, 8 and 24hours) analysis of cell stress protein levels following freezing at -10°C and -15°C was conducted via western blotting (Figure 3). Protein analyses revealed reductions in the anti-apoptotic protein Bcl-2 levels following freezing when compared to controls. The greatest decrease in Bcl-2 levels was seen within 1hour following freezing to -10°C and -15°C (7 fold and 13 fold reductions, respectively; Table 1). Analysis of the pro-apoptotic Bax protein revealed no significant changes following freezing (data not shown). This was not unexpected, as it is generally not the amount of Bax protein, but rather the translocation of Bax from the cytosol to mitochondrial pores that initiates mitochondrial mediated apoptosis. Analysis of the canonical pro-survival protein Akt (protein kinase B) revealed a decrease in phosphorylation and subsequent activation of Akt following freeze exposure. The greatest decrease in phosphorylated AKT (pAKT) was noted following exposure to -15°C. Compared to controls, pAKT levels -10°C samples were reduced by two fold at 1h post-freeze. This reduction increased to 4.5 fold at 4h, and 13.7 fold at 8h post-freeze. By 24h post freeze, pAkt protein levels began to recover yielding levels similar to the 4h post freeze sample. Analysis of -15°C samples revealed virtually no phosphorylated Akt at any time point assessed. This may indicate that freeze stress may prevent the initiation of survival signaling via AKT, thereby augmenting cell death. Western blot analysis of PARP (poly-ADP ribose polymerase), a protein activated during DNA repair and one of the first targets of the apoptotic “executioner” enzyme caspase-3, revealed proteolytic cleavage products at 4 and 8hours following a -10°C freeze. PARP analysis from -15°C samples revealed an increase in cleavage products at 4 and 8hours compared to -10°C samples and complete degradation of PARP cleavage products by 24 hours. Comparing -10°C and -15°C samples, PARP cleavage was found to be greater and quicker in the -15°C samples peaking at 4 hours whereas -10°C samples peaked at 8h hours post-thaw (Table 1).

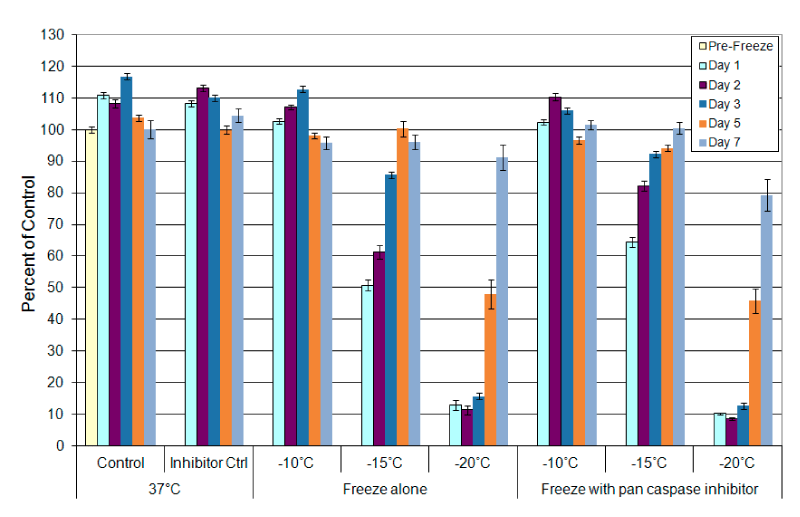

Inhibition of caspases decreases the contribution of apoptotic cell death processes post-freeze

With the identification of a delayed cell death and alterations in apoptosis related proteins following freezing, assessment of the impact of caspase inhibition on cell survival following freezing was conducted. This analysis was performed as a first step in quantifying the level of apoptotic involvement in cell death following freezing. C2 cells were pre-treated with a pan caspase inhibitor for 30 minutes prior to freeze to -10°C, -15°C and -20°C. As with freezing only samples, exposure to -10°C in the presence of caspase inhibitors did not significantly impact cell viability (Figure 4). Exposure to -15°C in the presence of caspase inhibition resulted in a 13.6% improvement in overall survival (26.6% increase) compared to non-inhibited -15°C samples (64.42% (±1.6) vs. 50.84% (±1.7), p<0.001 (Figure 4)). These results indicated that the apoptotic caspases signaling contributed to cell death following a -15°C freeze. When samples were exposed to -20°C in the presence of caspase inhibition no significant change in cell survival was noted.

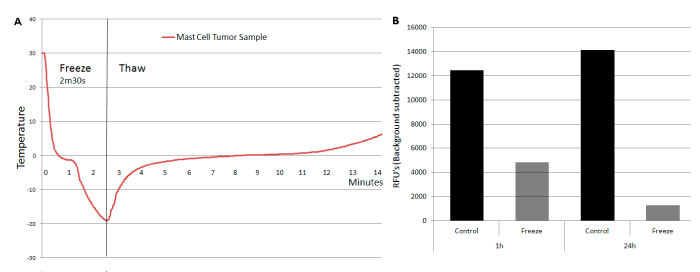

Primary mast cell tumor isolate response to low temperature exposure

In addition to the in vitro C2 studies, analysis of a primary grade 2, stage 2 canine MCT tumor sample was conducted. The MCT sample was excised via fine needle aspirate biopsy procedure, sectioned, weighed and then exposed to -20°C (Figure 5A). Following freezing, tissue sections were placed into ex vivo culture and analyzed for tissue viability at 1 and 24h post-thaw (Figure 5B). The response of the tissue samples was found to be similar to the C2 in vitro results. Tissue sample viability at 1hour post-thaw was found to be 40% of non-frozen controls. Following 24h of recovery, a further decrease in viability to 12% was observed. While a pilot ex vivo case study, the experimental results were found to correlate well with the in vitro freeze response data obtained with the C2 cell model following exposure to -20°C for 3 minutes.

Discussion

CA is an effective cancer treatment modality. However, the application of CA in veterinary medicine has been limited. In this study we investigated the effects of CA on MCT cells in an attempt to characterize MCT cell response to freezing, as well as identify the critical target temperature necessary to achieve total cell destruction. The data from this study demonstrated that CA was effective at destroying MCT cells when temperatures of -25°C and lower were achieved regardless of the hold time. The data also demonstrate that when temperatures ≥-20°C were applied the exposure time (hold time) was an important factor. The impact of freezing to <-20°C was confirmed in both the in vitro cell model and pilot ex vivo MCT tissue evaluations. These data correlate well with previous reports from our laboratory on CA in cell systems such as prostate and renal cancer [39,52], establishing that both the nadir temperature and time at temperature play a role in overall outcome.

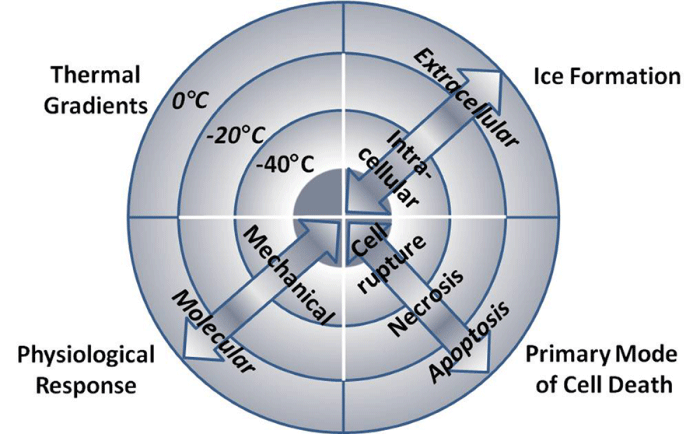

When performing solid tumor cryosurgery, the temperature typically reached at the center of a cryogenic lesion ranges between -80°C and -180°C [11,47,50,51]. Extending radially from the center of the cryolesion, temperatures increase until the edge of the frozen mass, where temperatures are 0°C, nominally (Figure 6). The corresponding isothermal gradient (temperature gradient profile) within the frozen mass varies depending on application time, freeze repetition, and cryogen utilized [11,47,50,51]. As such, it is important to understand the characteristics of the cancer cell response to the range of temperatures associated with a cryogenic lesion. Our studies focused on the warmer sub-freezing temperatures associated with the periphery (outer edge) of the freeze lesion, as it is generally accepted that temperatures below -40°C result in complete cancer cell lysis through physical ice rupture [12,13]. The thermal range of 0°C to -40°C is characterized by a region of heterogenic cell responses which includes cell lysis, activation of necrotic and apoptotic pathways, as well as some cell survival [11,39,45]. Numerous reports by our group as well as others have demonstrated the transition from complete cell death to complete cell survival within this region [39,53,54,43]. Given these facts, it is important to identify the critical lethal temperature for MCT cells as well as understand the molecular responses of this cancer to CA to yield more effective treatment. To this end, the data revealed the minimal lethal temperature for C2 MCT cells was -25°C in vitro whereas the -15°C to -20°C range resulted in a heterogeneous mix of necrotic, apoptotic and surviving cell populations. The data also demonstrated that regardless of the exposure temperature, necrosis was the primary mode of cell death. Apoptotic contribution to cell death following freezing has been reported primarily at warmer, sub-freezing temperatures [43,55-57]. In this study, apoptotic involvement was found following exposure to -15°C and was most prominent at 1 and 8 hours post-freeze resulting in the delayed cell death response.

Proteomic analysis confirmed the contribution of a delayed molecular response. The observed loss of Bcl-2 and maintenance of Bax total protein levels (western blot analysis) suggested a shift in the Bcl-2/Bax ratio, thus indicating the activation of the mitochondrial molecular switch signaling the initiation of apoptosis. This is consistent with Robilotto, et al., [55], wherein it was reported that exposure of prostate cancer cells to -15°C results in the activation of mitochondrial based apoptosis whereas exposure to temperatures of ≤-30°C results in the initiation of membrane mediated apoptosis. The observed decrease in pAkt following freezing further suggests that the loss of pro-survival signaling contributes significantly to the overall level of cell death. Combined with the observed increases in PARP cleavage and Caspase activation, the molecular data suggest that multiple cell death pathways are involved in low temperature death responses in mast cells.

Given that the incidence of MCT’s is largely breed specific, a genetic basis for tumor development is likely. Numerous studies have implicated the c-kit gene product, an integral membrane receptor tyrosine kinase (RTK), in MCT signaling [58-61]. Many mutations in this gene cause the constitutively active form of the receptor, signaling the cell to proliferate even in the absence of its ligand, stem cell factor [58]. As such, c-kit specific small molecule inhibitors have been used with some success. Drug resistance, however, could become an issue in vivo [60]. Previous studies from our laboratory have shown the success of adjuvants used for cryosensitization [37,57,62-65]. These and other studies have detailed the benefit of adjunctive treatment involving CA with the pre-treatment of low-dose chemotherapy, nutraceuticals or other agents in a number of cancers including prostate, breast, lung and liver among others [37,65-77]. in vitro and in vivo studies involving prostate cancer have shown the ability of cryosensitizing adjuvants to elevate the minimal lethal temperature for hormone refractory prostate cancer from -40°C to -20°C via pre-treatment with sub-clinical (non-toxic) doses of 5-fluorocil, taxotere and cisplatin [65,66,71]. Other studies have demonstrated that combinatorial approaches using the active nutraceutical calcitriol (vitamin D3) can result in the elevation of the minimal lethal temperature for prostate cancer to the -10 to -15°C range [57,75,76,78]. Based on these reports coupled with the identification of a delayed molecular cell death response activated following freezing of C2 cells, the use of adjuvant agents, including chemotherapy and immunotherapy agents as well as RTK inhibitors, in combination with CA is an area that may also provide benefit for treatment of MCT’s and as such should be explored in future studies.

In conclusion, the data from this study suggest that CA has the potential to be an effective therapeutic option for the treatment of canine mast cell tumors, both malignant and benign. The findings provide a baseline characterization of the cellular and molecular responses of an MCT cell line to freezing as well as identified -20°C to -25°C as the critical temperature range for complete MCT cell destruction depending on hold time. Complete C2 cell destruction at -25°C was found regardless of the hold time whereas a hold of 10 minutes was necessary of complete destruction at -20°C. Pilot study ex vivo freezing of grade 2, stage 2 MCT tissue correlated with in vitro findings and in combination provide a basis for the further exploration of the use of CA for the treatment of MCT in vivo. The data presented herein suggest that CA may provide a minimally invasive, rapid therapeutic option for treating mast cell tumors. As such, additional studies in the application of CA for MCT treatment are warranted.
